Turn Your Excavator into a Versatile Reach Mower! Built Tough to Tackle Harsh Mowing Conditions.

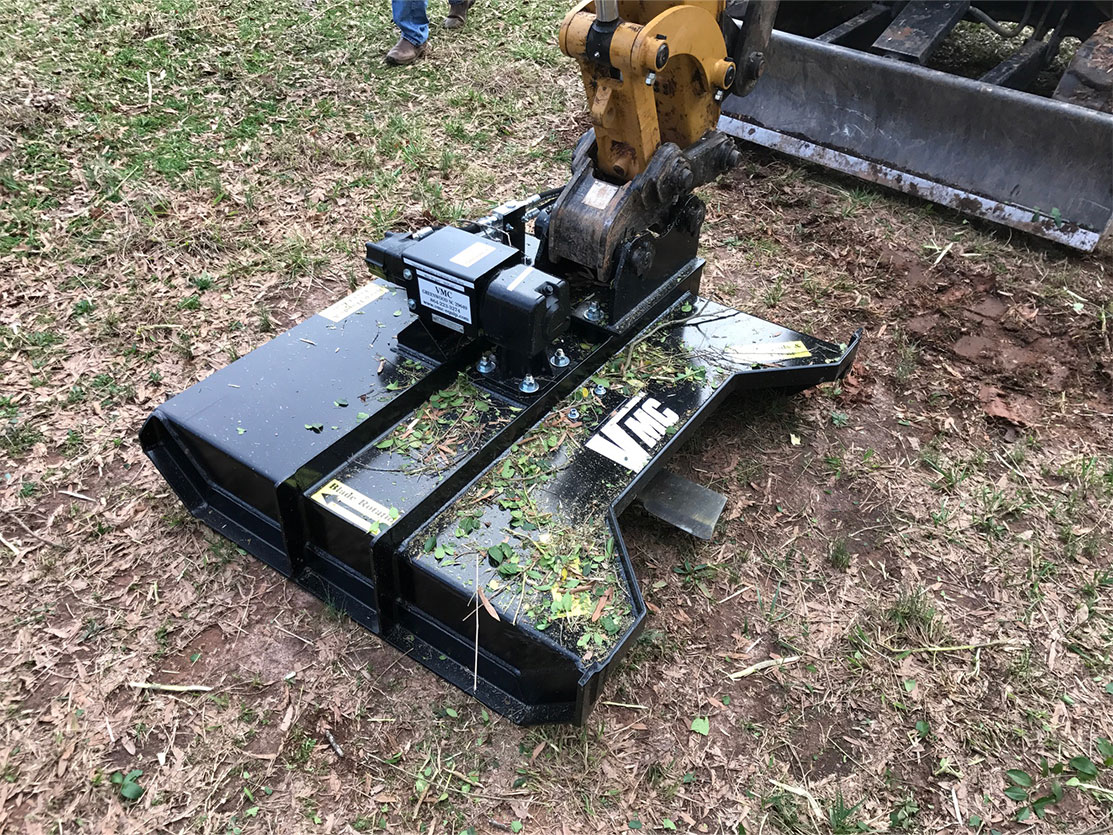

VMC Excavator Brush Cutter attachments are great for mowing tree lines, ditches, pond banks, steep hillsides and overgrown brush. We’ve been making compact brush cutters for excavators since 2007. Our equipment finds its way into the hands of large property owners, hunting plot managers, farmers, municipalities, and anyone else tasked with keeping land tame and usable.
Heads are available for most excavators with compatible hydraulics. Compatible brands include Kubota, Bobcat, Caterpillar, John Deere, Case, Takeuchi, Yanmar, and many more.
Excavator Brush Cutter Series Specs
| MODEL | HYDRAULIC FLOW RANGE (GALLONS PER MINUTE) | MACHINE TONNAGE | MOWING WIDTH | Cutting Capacity | MODEL WEIGHT (POUNDS) |
|---|---|---|---|---|---|
| EXG36LL | 7-15 GPM | 2 T | 36″ | 2″ | 370 lb |
| EXG36L | 8-12 GPM | 2.5-3.5T | 36″ | 3″ | 490 lb |
| EXG42L | 10-15 GPM | 3.5-4T | 42″ | 4″ | 539 lb |
| EXG42 | 15-25 GPM | 4-7T | 42″ | 4″ | 620 lb |
| EXG48 | 16-25 GPM | 5-7T | 48″ | 4″ | 700 lb |
Models and specs may change without prior notice*
All VMC standard series Brush Cutters do not require case drains and come standard with matching hydraulics, safety relief valve, check valve, shear bolt, mechanical speed increaser for more power and efficiency for the lower GPM flow compact excavators. Compare the difference and see the VMC Advantage.
- Value Priced
- Proven Performance. VMC has designed and manufactured excavator cutters since 2007.
- Lower Maintenance and Operating Cost.
- Engineered and Manufactured by VMC in Greenwood South Carolina USA .
Brush Cutter Compatibility
Features
Model EXG36L
The EXG36L is compatible with excavators that have 8.5 – 15 gpm hydraulic output. Here is a list of machines compatible with the EXG36L based on specifications, our experience and testing, or both:
Kubota: KX121, KX040, U27, U35, KX033, KX030 and more.
Bobcat: E26, E32, E35, 331, and more.
Caterpillar: 303, 303.5, and more.
Also compatible with certain excavators from Komatsu, Case, Hitachi, Hyundai, Kobelco, XCMG, JCB and others. Contact us for compatibility questions.
Model EXG42L
The EXG42L is compatible with excavators that have 10 – 16 gpm hydraulic output. Here is a list of machines compatible with the EXG42L based on specifications, our experience and testing, or both:
Kubota: KX121, KX040, U35, KX033, KX030 and more.
Bobcat: E32, E35, 331, and more.
Caterpillar: 303, 303.5, and more.
Sany: SY35
Yanmar: VIO30,VIO35, SV40
Takeuchi: TB230, TB235, TB335,TB240
Also compatible with certain excavators from Komatsu, Case, Hitachi, Hyundai, Kobelco, XCMG, JCB and others. Contact us for compatibility questions.

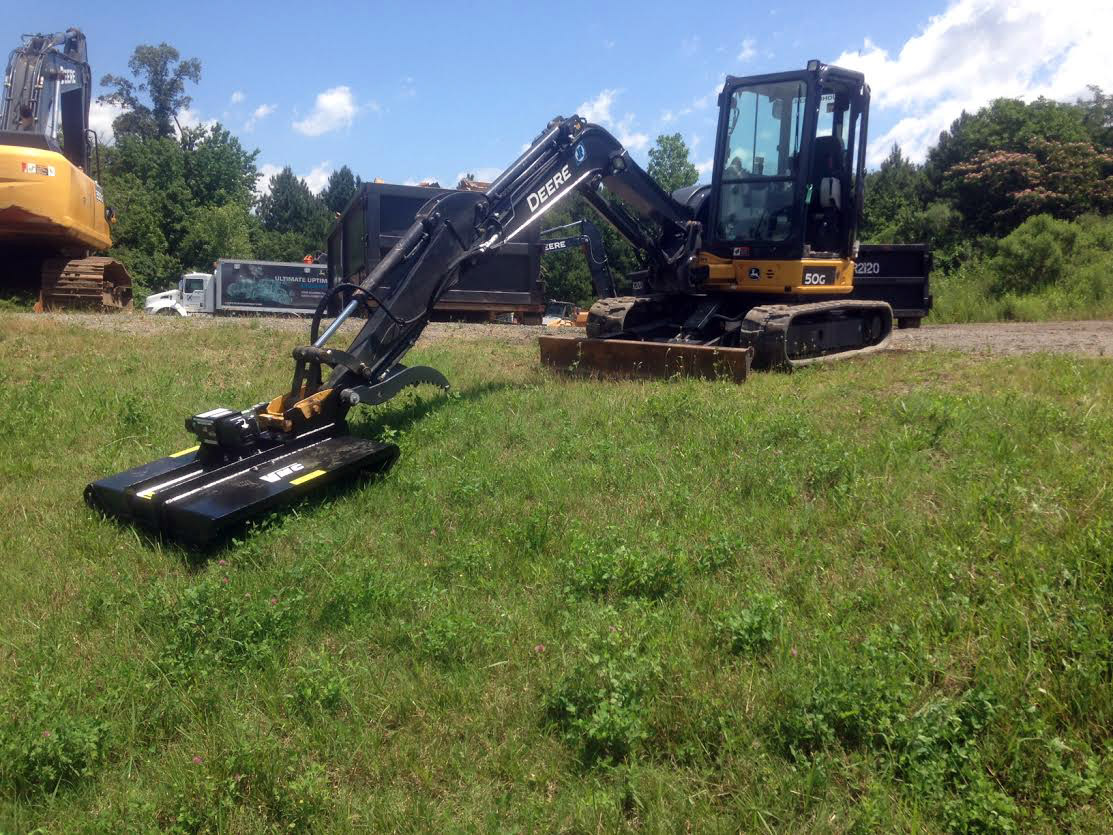

Model EXG42
The EXG42 is compatible with excavators that have 15 – 25 gpm hydraulic output. Here is a list of machines compatible with the EXG42 based on specifications, our experience and testing, or both:
Kubota: U48, KX161, KX057, U55, and more.
Bobcat: E48, E50, E55, E63, 331, 335, 337, and more.
John Deere: 50, 60 , and more.
Caterpillar: 305, 305.5, 306 and more.
Sany: SY50, SY60
Yanmar: VIO50, VIO55 and more
Takeuchi: TB250, TB260
Also compatible with certain excavators from Komatsu, Case, Hitachi, Hyundai, Kobelco, XCMG, JCB and others. Contact us for compatibility questions.
Model EXG48
The EXG48 is compatible with excavators that have 16 – 25 gpm hydraulic output. Here is a list of machines compatible with the EXG48 based on specifications, our experience and testing, or both:
Kubota: KX161, KX057, U55, and more.
Bobcat: E50, E55, E63, E60, 337, and more.
John Deere: 50, 60 , and more.
Caterpillar: 305, 305.5, 306 and more.
Sany: SY60
Yanmar: VIO50, VIO55 and more
Takeuchi: TB250, TB260
Also compatible with certain excavators from Komatsu, Case, Hitachi, Hyundai,Kobelco,XCMG, JCB and others. Contact us for compatibility questions.
Excavator Brush Cutter Features
Bolt-On Mounting Brackets
Fully Welded and Reinforced Deck
Most Mounts In Stock for Quick Shipment

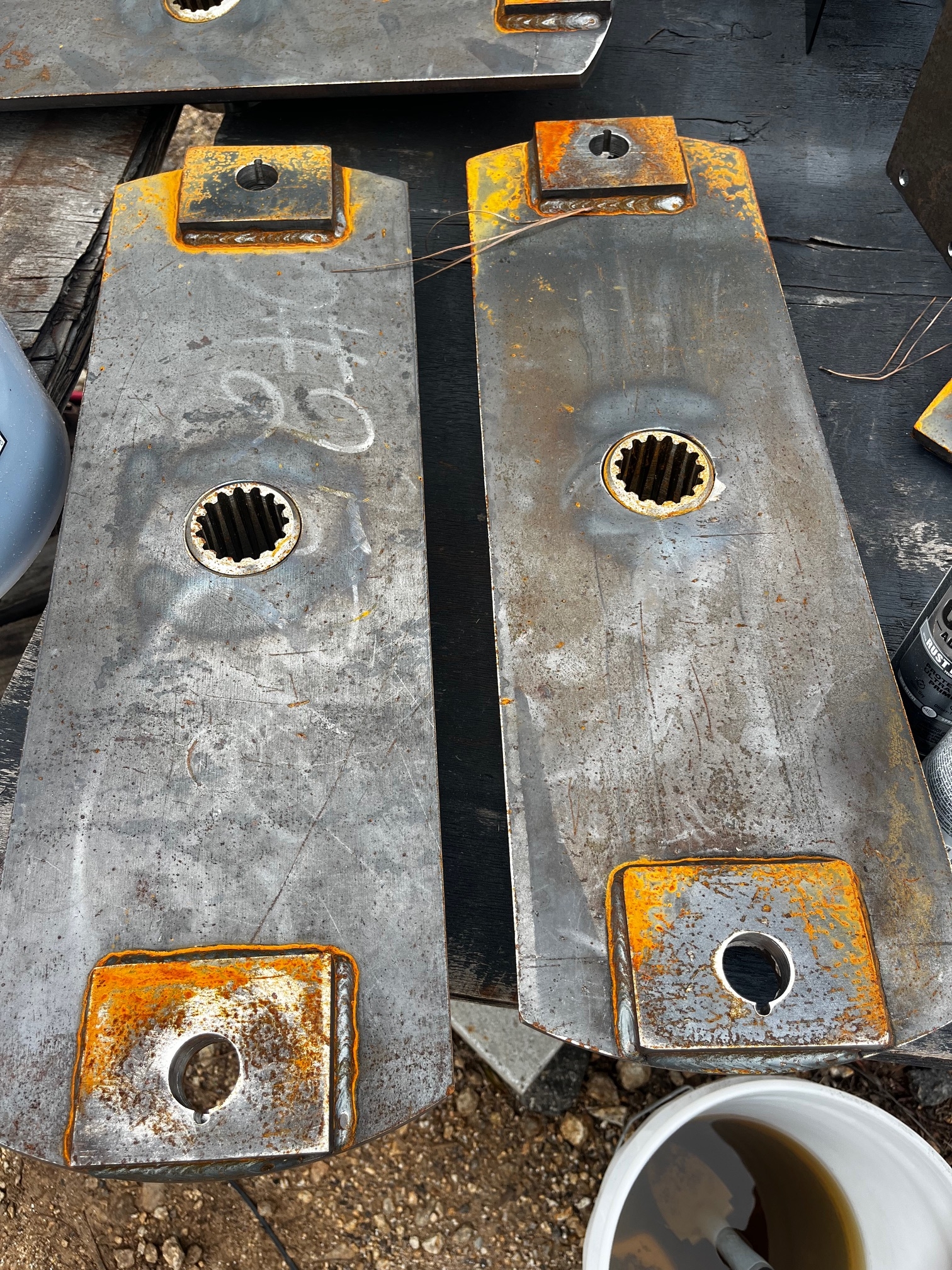

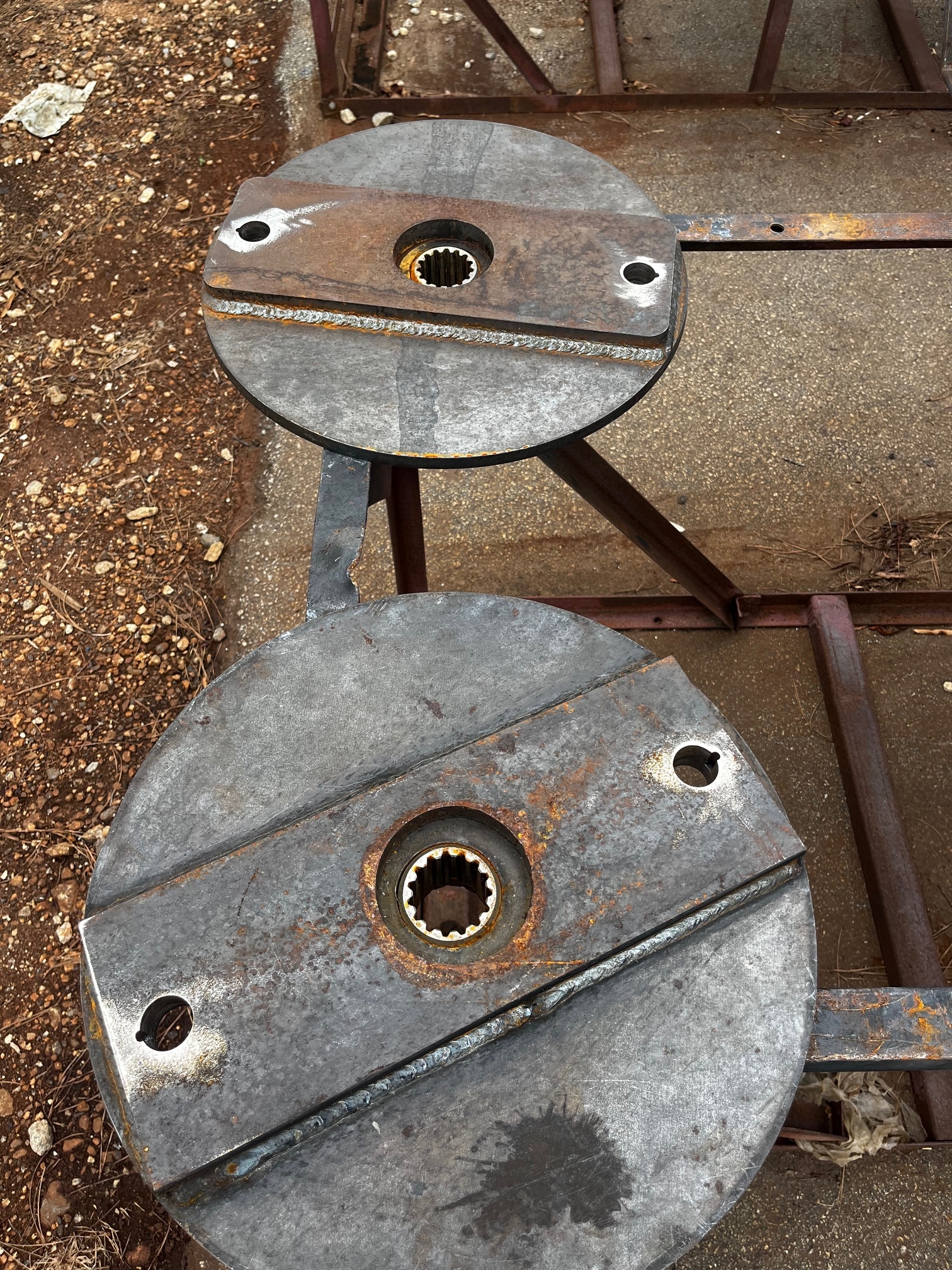

Heavy Duty Blade Carrier 1 1/2″ Thick
5″ Wide Heavy Duty Heat Treated Forged Blades Made in USA
1 Year Limited Warranty Against Manufacturing Defects
Buy with confidence. We stand behind our products!

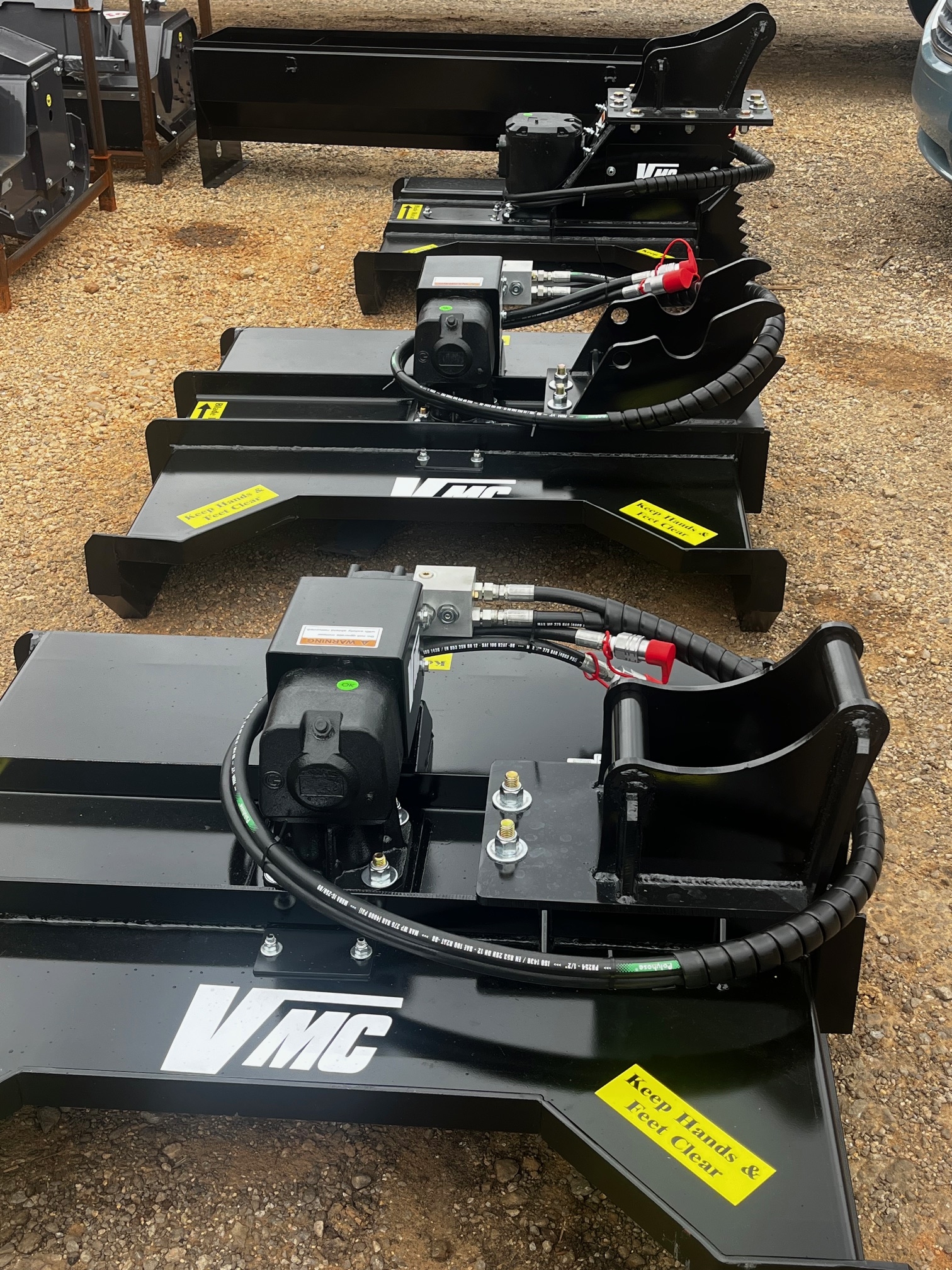

Hoses are wrapped in protective covering
Comes standard with 8 Ft Hoses and Flat Face Quick Couplers.
Indirect drive by using a 50 hp speed increaser to provide higher speed and torque to cut through the toughest vegetation.
For under 20 gpm machines the speed increasers provide better performance allowing for larger displacement hydraulic high torque motors.
hydraulic Motor
All VMC Standard Duty cutters utilize Premium made Disc (Geroler) Style Hydraulic motors. High Torque, Efficiency, Durability and Value.
These motors give peak performance on the size hydraulic flows and pressures found on most all modern Compact Hydraulic Excavators.
Click on the items below to learn more.

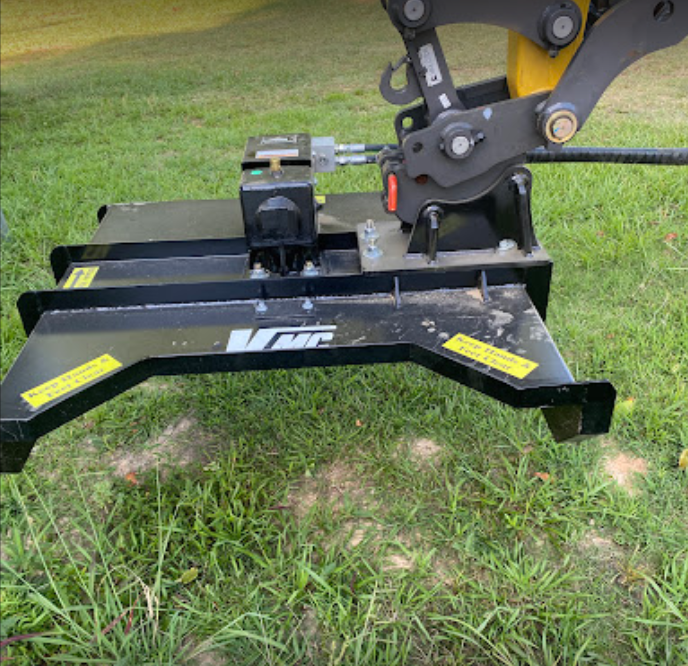

What to Expect Operating a VMC Excavator Brush Cutter
We offer a full lineup of excavator brush cutters to fit most brands and sizes of excavators, from excavators with 8 GPM of hydraulic flow and up. We offer excavator mounts to fit most makes and styles.
One of the key benefits of purchasing a VMC Excavator Brush Cutter is we specialize in excavator brush cutters and other mowing equipment. We manufacture the excavator brush cutters in Greenwood, SC. Unlike some other brands that are just a marketing company, we make everything we sell! We can control the quality, and we know the equipment inside and out. We have 45+ years of experience in heavy duty mowing equipment. We do not make skid steer buckets or skid steer grapples; we specialize in Excavator Brush Cutters!
Contact us today to pick out the best VMC excavator brush cutter for your excavator.
Matching Up the Correct Model to Your Excavator
Matching up the correct VMC Excavator Brush Cutter to your excavator is critical to obtain maximum cutting performance.
Understanding Excavator Hydraulics
When we recommend a cutter that requires 20 GPM to operate the cutter, we are talking about the Auxiliary Hydraulic Output on the excavator. Though the excavator manufacturer states the excavator puts out 20 GPM, that is true. But it can lead to misunderstanding when you’re trying to select the VMC Excavator Brush Cutter you need. When you install a VMC Excavator Brush Cutter on your excavator and start to move the boom functions, you will notice a drop off in cutter speed. The auxiliary hydraulics on most excavators are second in priority over the other hydraulic functions on the excavator. The excavator is taking some of the hydraulic flow from the cutter to supply the other functions. The travel function on most excavators will take the most hydraulic flow away from the cutter. All brands and even models react differently due to the way the hydraulic systems are designed.
You can eliminate this from happening by installing a priority valve on your excavator. It will dedicate a certain amount of hydraulic flow to go to your VMC Excavator Brush Cutter. These kits usually run a few thousand dollars and are not really feasible on a smaller excavator.
Please contact us today and put our experience to work for you on picking out the correct VMC Excavator Brush Cutter for your excavator and mowing needs!
